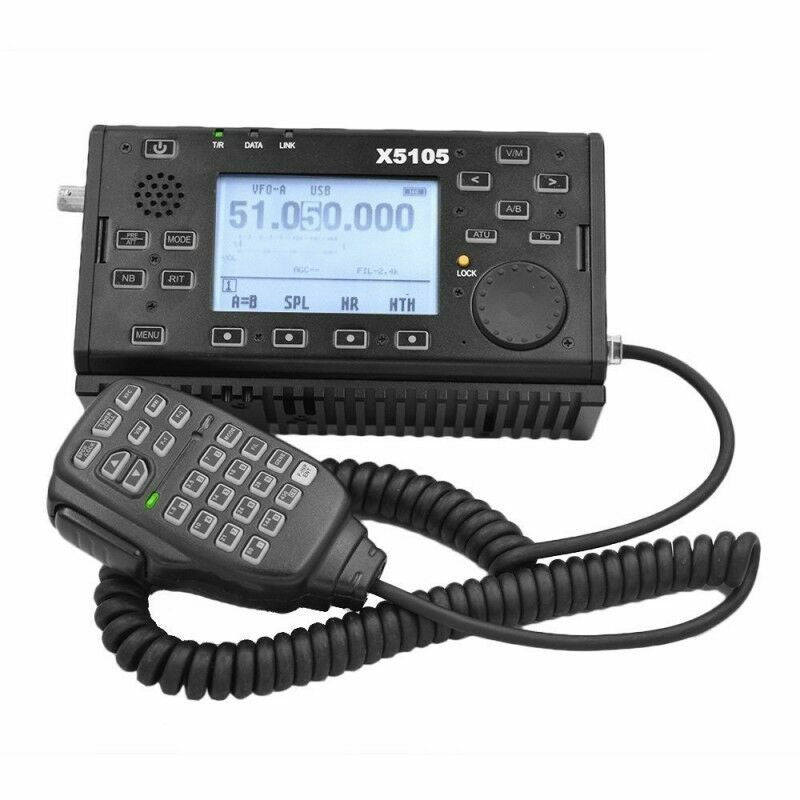

EMISORAS CAZA Transceptor HF+50 XIEGU X5105

EMISORAS CAZA Transceptor HF+50 XIEGU X5105

€649,99
€649,99
Agotado
Impuesto incluido. Los gastos de envío se calculan en la pantalla de pagos.

Frecuencia: 500Khz-30Mhz y 50-54Mhz TX/RX.

  • Modos: CW–AM–FM-USB-LSB.
  • Peso: 830 gramos.
  • Incorpora en su interior batería de Litio de 3800mAh.
  • Incorpora acoplador de antenas automático.
Especificaciones:
Battery capacity 3800mAh @12V
Operating temperature range -10℃ ～ +60℃
Working voltage Supply voltage: normal: 13.8VDC + 15%, negative grounding Operating voltage: 9.0-15.0VDC, negative grounding
Antenna impedance 50Ω (BNC)
Maximum output power 5W(SSB/CW/FM)，1.5W(AM carrier)， @13.8VDC
Modes SSB/CW/AM/FM/FSK
Current parameters Receive: 660mA@ Max Transmit: 2.5A@ Max
Emission current 2.5A@ Max
Transmitting Parameters
FM Maximum frequency swing ±5kHz
Microphone impedance 200-10k(conventional 600Ω)
Modulation mode SSB balanced modulation AM low level amplitude modulation FM Variable reactance frequency modulation
Sideband spurious 50dB
Sideband spurious 400Hz-2800Hz（-6dB）
spur reduction -45dB
Receiving Parameters
Audio output 0.6W （8Ω，≤10% THD）
Audio output impedance 4 – 16Ω
Circuit type double frequency conversion superheterodyne + audio DSP
If Rejection 60dB
Image rejection 70dB
Selectivity SSB： -6dB:2.4kHz/-60dB:4.6kHz; CW： -6dB:500Hz/-60dB:2000Hz; AM： -6dB:6.0kHz/-60dB:25.0kHz; FM： -6dB:12.0kHz/-60dB:25.0kHz.
Receiver Features
IF frequency first IF: 70.455MHz； second IF: 10.695MHz； third IF: 455kHz（FM).
Technical
Receive frequency range 500kHz-30MHz；50MHz-54MHz
Transmit frequency range 160 meters -6 meters (Amateur band only)
Frequency stability after turn on the radio 1-60 minutes is ± 2ppm,@25℃：1ppm/hour
Carrier suppression ＞40dB
Receiver sensitivity 500kHz-1.8MHz ：SSB/CW / ， AM =10uV， FM /； 1.8MHz-28MHz： SSB/CW=0.25uV， AM = 2uV， FM /； 28MHz-30MHz： SSB/CW=0.25uV， AM =2uV， FM=0.35uV； 50MHz-54MHz： SSB/CW=0.25uV， AM =2uV， FM=0.35uV； (PRE=on，ATT=off，NB=off，NR=off，SSB/CW/AM = 10dB S/N，FM = 12dB SINAD)
Antenna impedance 50Ω
Mini Frequency step 1Hz
Product specifications
Overall size 160*100*46mm
Weight 0.94Kg
